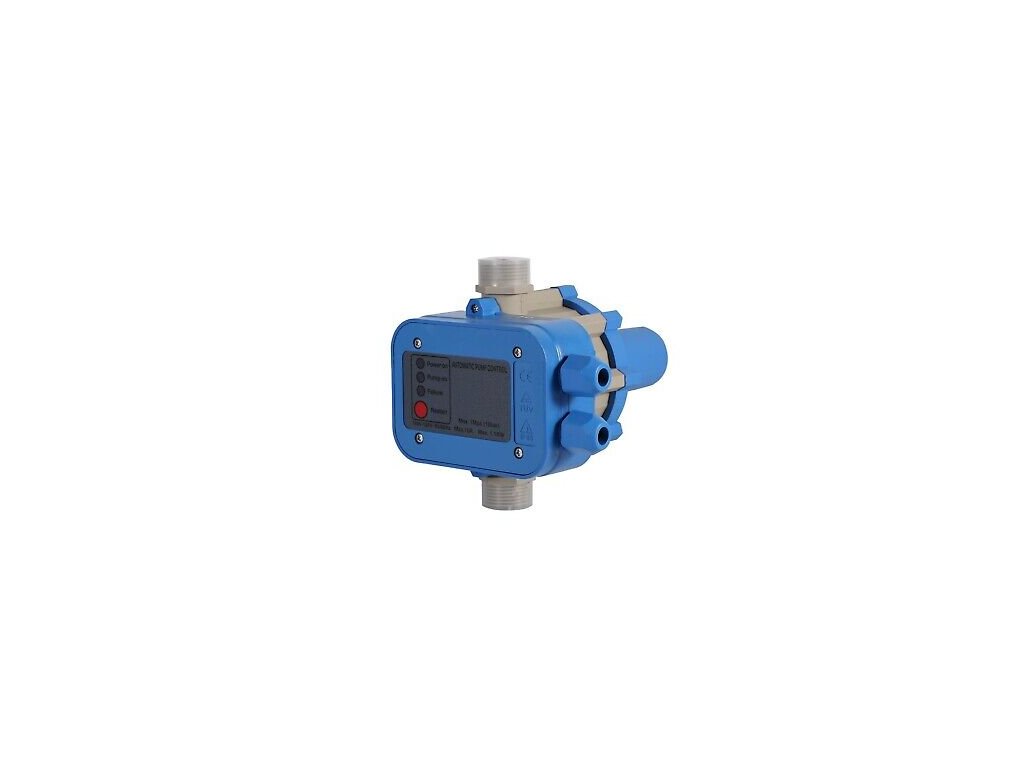

PS-01 Automatic pump controller, 10BAR, 10A, 1.1KW

Product detailed description

Information for buyers: Information about the condition of the goods and warranty at the end of the advertisement.

Pressure regulation is suitable for your domestic water supply in the house and garden. Automatically controls deep well pumps, centrifugal pumps, submersible pumps. The pump control unit is installed between the conveyor (pump) and the tapping point.

Technical data

Switching pressure: 1.5 bar pressure setting for switching on (1.5 bar is preset) can be adjusted using the adjusting screw. Operating pressure: max. Supply voltage 10 bar: 220 V - 240 V / 50 Hz switching power: up to 1.1 kW protection class: IP 65 current consumption: max. 10A Operating temperature: Max. 60°C LED power indicator: on, pump on, fault, restart.



Dry-running protection

Shuts off the pump in case of water shortage, check valve: prevents the effects of pressure surges. Connection: 2 x 1 inch male thread. Cable lengths: 50 cm connector and 90 cm plug. Dimensions: 25 x 17 x 17 cm.

How it works

After water is removed (pressure drops below 1.5 bar), the control unit turns on the pump. By closing the tap (internal water flow monitor switches off), the control unit temporarily switches off the pump "OFF". If the control unit does not detect water flow, the pump switches off with a time delay and protects the pump from "dry running". The built-in check valve prevents the pipeline system from being unloaded on the consumer side.




Condition: New. Without original packaging and manual.
Warranty: Despite the fact that it is new goods, the sale is conducted as "used goods" with a shortened warranty.
